#PQ288
PicoScope 4000 High-resolution deep-memory oscilloscope - 2Ch
#PQ288
PicoScope 4000 High-resolution deep-memory oscilloscope - 2Ch
$1711.00*
*15% GST applicable for sales within NZ
Product Description
- 2, 4 or 8 channels
- 20 MHz bandwidth
- 12-bit resolution
- 256 MS capture memory
- 80 MS/s sampling rate
The PicoScope 4000A Series of PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio.

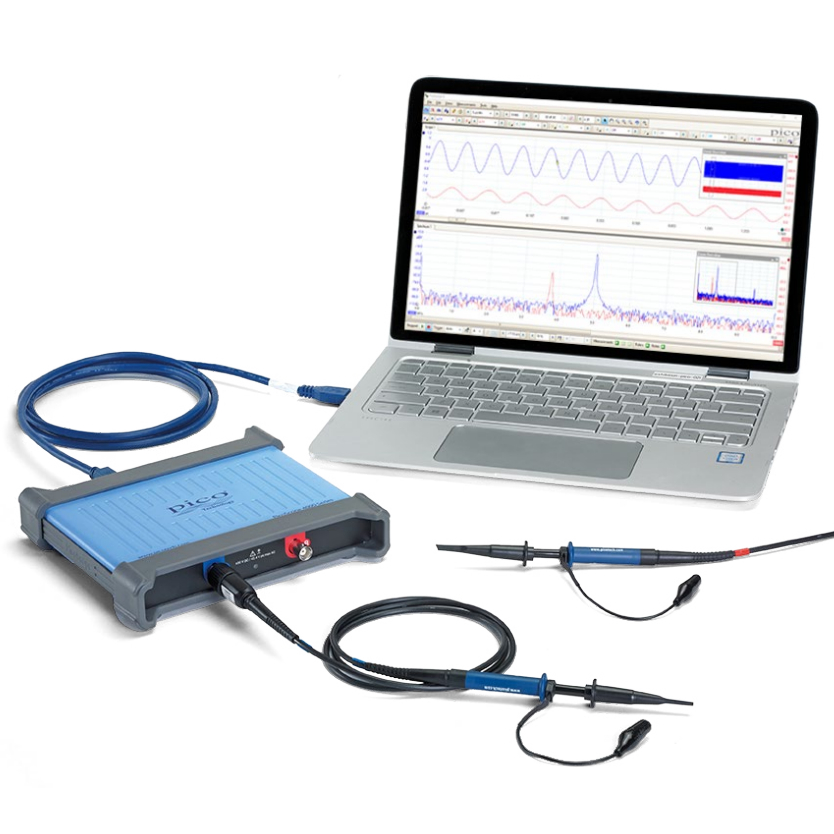

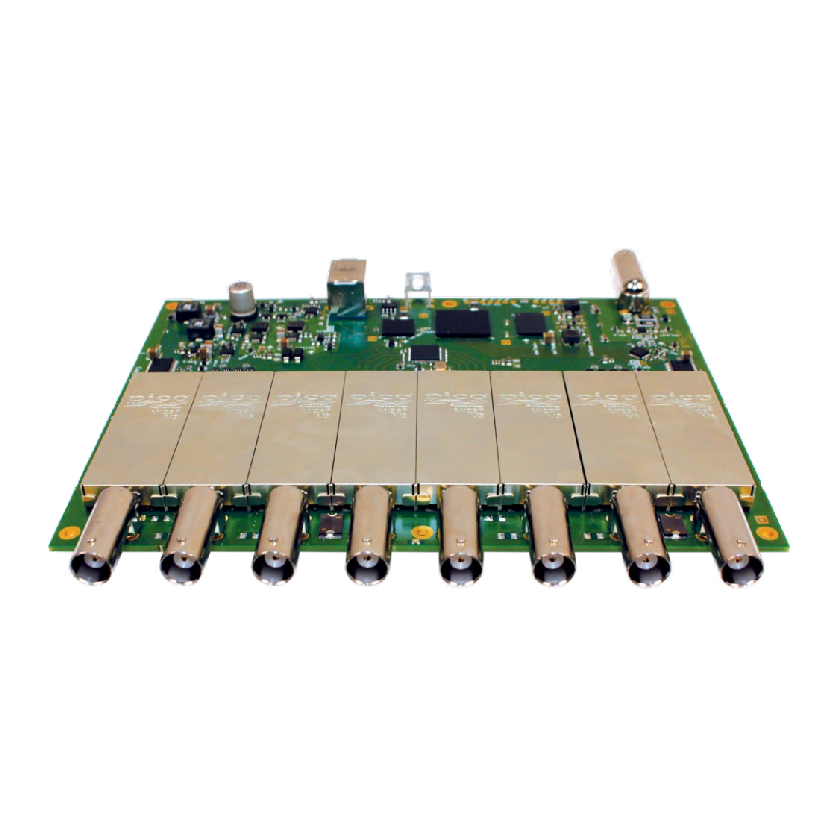

With 2-, 4- and 8-channel models available, the PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit triggerable signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC.
All models run with the popular PicoScope user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.
Included in Kit

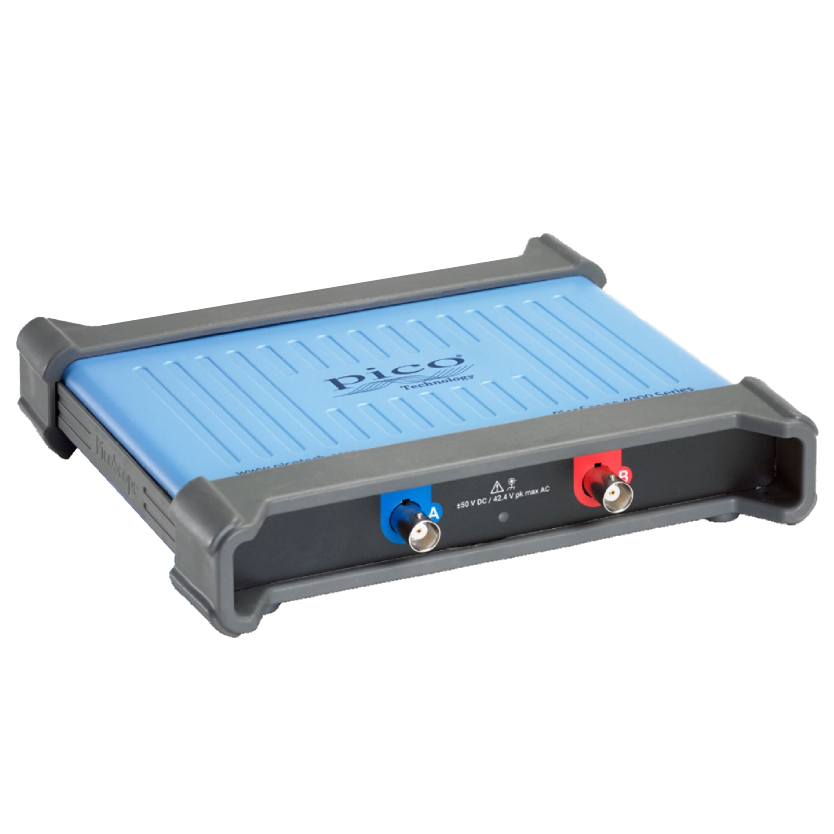

PicoScope 4000A Series 2 channels oscilloscope
2x Oscilloscope probes
USB 3.0 cable
Quick Start Guide
Specifications
| Model | PicoScope 4224A | PicoScope 4424A | PicoScope 4824A | |||
|---|---|---|---|---|---|---|
| Oscilloscope – vertical | ||||||

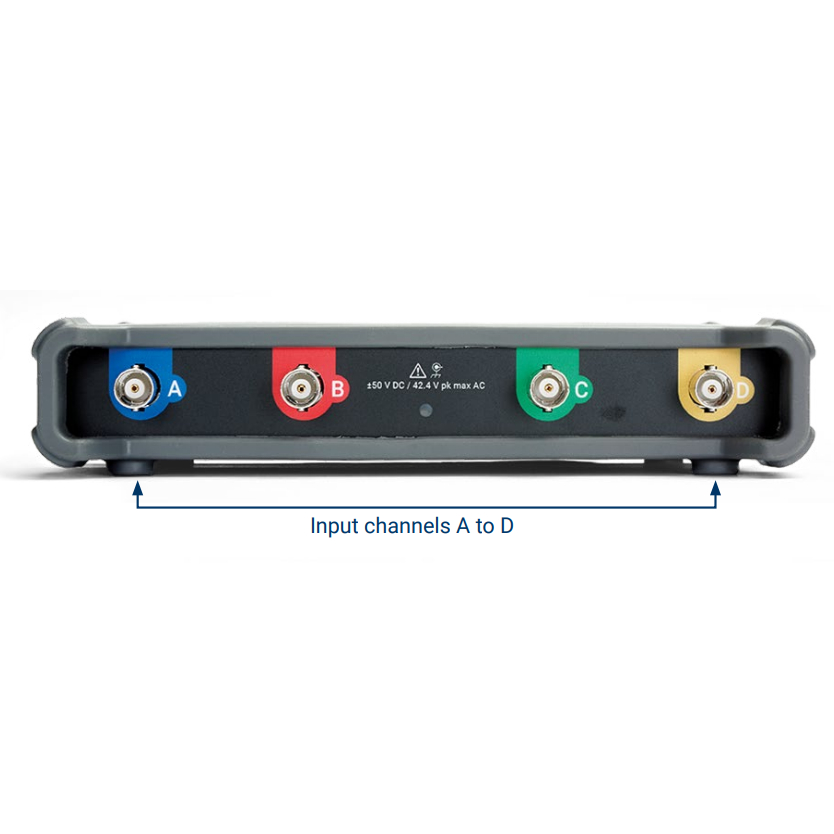

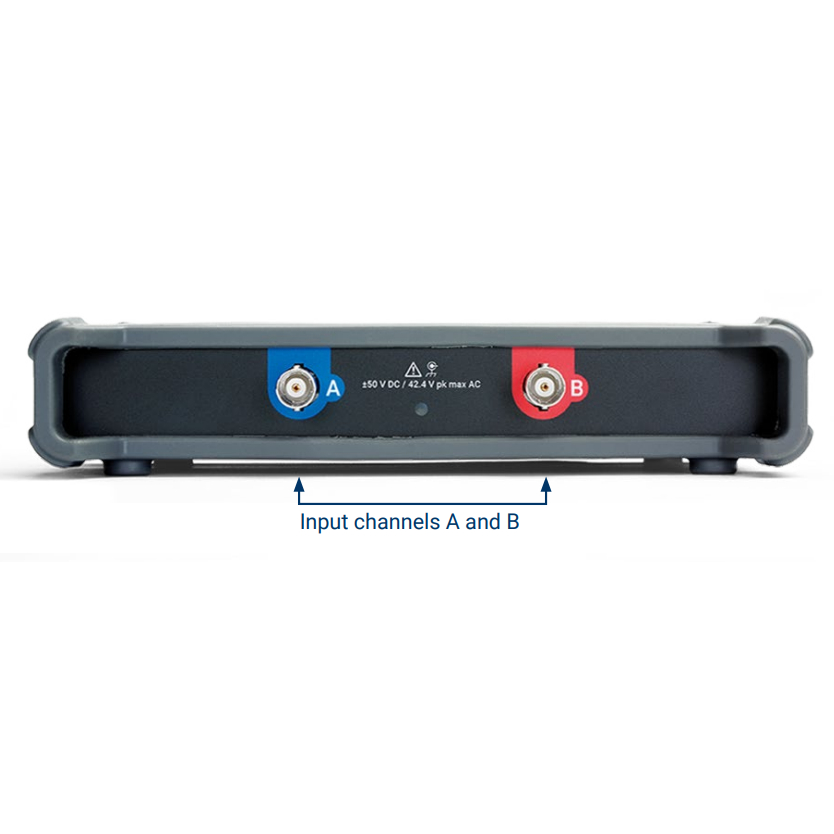

| Input channels | 2 | 4 | 8 | |||
| Bandwidth (−3 dB) | 20 MHz (50 mV to 50 V ranges) 10 MHz (10 mV and 20 mV ranges) | |||||
| Rise time (calculated) | 17.5 ns (50 mV to 50 V ranges) 35.0 ns (10 mV and 20 mV ranges) | |||||
| Input type | BNC, at least 20 mm spacing | |||||
| Vertical resolution | 12 bits | |||||
| Software-enhanced vertical resolution | Up to 16 bits | |||||
| Input sensitivity | 2 mV/div to 10 V/div (10 vertical divisions) | |||||
| Input ranges | ±10 mV to ±50 V full scale, in 12 ranges | |||||
| Input coupling | Software-selectable AC / DC | |||||
| Input characteristics | 1 MΩ ∥ 19 pF | |||||
| DC accuracy | ±1% of full scale ±300 μV | |||||
| Analog offset range (vertical position adjustment) | ±250 mV (10 mV to 500 mV ranges) ±2.5 V (1 V to 5 V ranges) ±25 V (10 V to 50 V ranges) | |||||
| Analog offset accuracy | ±1% of offset setting additional to basic DC accuracy | |||||
| Maximum input voltage | ±50 V DC, 42.4 V peak AC | |||||
| Overvoltage protection | ±100 V (DC + AC peak) | |||||
| Oscilloscope – horizontal | ||||||
| Maximum sampling rate (real-time) | 80 MS/s (up to four channels in use) 40 MS/s (five or more channels in use) | |||||
| Maximum sampling rate (USB 3.0, continuous streaming mode) | 20 MS/s using PicoScope 6 software, shared between channels 80 MS/s max. for a single channel using PicoSDK. 160 MS/s total across all channels. (PC-dependent) | |||||
| Timebase ranges | 20 ns/div to 5000 s/div | |||||
| Buffer memory | 256 MS shared between active channels | |||||
| Streaming buffer memory (PicoScope) | 100 MS | |||||
| Streaming buffer memory (SDK) | Up to available PC memory | |||||
| Maximum buffer segments | 10,000 | |||||
| Maximum waveforms per second | 100,000 (PC-dependent) | |||||
| Timebase accuracy | ±20 ppm (+5 ppm/year) | |||||
| Sample jitter | 25 ps RMS typical | |||||
| Dynamic performance (typical) | ||||||
| Crosstalk | −76 dB, DC to 20 MHz | |||||
| Harmonic distortion | < −60 dB, 10 mV range < −70 dB, 20 mV and higher ranges | |||||
| SFDR | > 60 dB, 20 mV and 10 mV ranges > 70 dB, 50 mV and higher ranges | |||||
| Noise | 45 μV RMS on 10 mV range | |||||
| Bandwidth flatness | DC to full bandwidth (+0.2 dB, −3 dB) | |||||
| Pulse response | < 1% overshoot | |||||
| Triggering | ||||||
| Source | Channels A to B | Channels A to D | Channels A to H | |||
| Trigger modes | Free run, auto, repeat, single, rapid (segmented memory) | |||||
| Trigger types | Edge with adjustable hysteresis, pulse width, window, window pulse width, dropout, window dropout, interval, logic level, runt pulse | |||||
| Trigger sensitivity | Digital triggering provides 1 LSB accuracy up to full bandwidth | |||||
| Maximum pre-trigger capture | 100% of capture size | |||||
| Maximum post-trigger delay | Zero to 4 billion samples (settable in 1 sample steps) | |||||
| Trigger rearm time | < 3 μs on fastest timebase | |||||
| Maximum trigger rate | Up to 10 000 waveforms in a 30 ms burst | |||||
| Advanced digital trigger levels | All trigger levels, window levels and hysteresis values settable with 1 LSB resolution across input range | |||||
| Advanced digital time intervals | Settable with 1 sample resolution from 1 sample (minimum 12.5 ns) up to 4 billion sample intervals | |||||
| Function generator | ||||||
| Standard output signals | Sine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-sine, white noise, PRBS | |||||
| Standard signal frequency | 0.03 Hz to 1 MHz | |||||
| Sweep modes | Up, down, dual | |||||
| Triggering | Can trigger a counted number of waveform cycles or sweeps (up to 1 billion) from the scope trigger or manually from software. | |||||
| Frequency accuracy | ±20 ppm | |||||
| Frequency resolution | < 0.02 Hz | |||||
| Voltage range | ±2 V | |||||
| Amplitude and offset adjustment | Signal amplitude and offset within ± 2V range. Adjustable in approx 300 μV steps. | |||||
| Amplitude flatness | < 0.5 dB to 1 MHz typical | |||||
| DC accuracy | ±1% of full scale | |||||
| SFDR | 87 dB typical | |||||

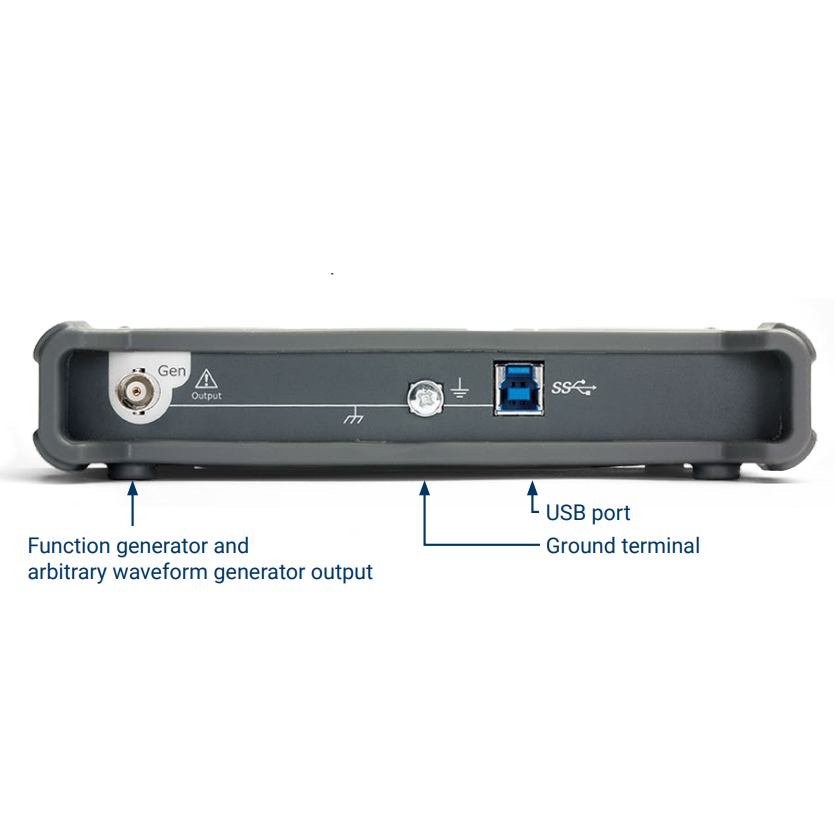

| Output characteristics | Rear-panel BNC, 600 Ω output impedance | |||||
| Overvoltage protection | ±10 V | |||||
| Arbitrary waveform generator | ||||||
| Update rate | 80 MS/s | |||||
| Buffer size | 16 kS | |||||
| Resolution | 14 bits (output step size approximately 300 μV) | |||||
| Bandwidth | 1 MHz | |||||
| Rise time (10% to 90%) | 150 ns | |||||
| Sweep modes, triggering, frequency accuracy and resolution, voltage range and accuracy and output characteristics as for function generator. | ||||||
| Spectrum analyzer | ||||||
| Frequency range | DC to 20 MHz | |||||
| Display modes | Magnitude, average, peak hold | |||||
| Windowing functions | Rectangular, Gaussian, triangular, Blackman, Blackman-Harris, Hamming, Hann, flat-top | |||||
| Number of FFT points | Selectable from 128 up to 1 million in powers of 2 | |||||
| Scale / units | X axis : linear or log 10 Y axis : logarithmic (dbV, dBu, dBm, arbitrary) or linear (volts) | |||||
| Math channels | ||||||
| Scope mode | AC RMS, true RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak to peak, rise time, rising rate. | |||||
| Spectrum mode | Frequency at peak, amplitude at peak, average amplitude at peak, total power, THD %, THD dB, THD+N, SFDR, SINAD, SNR, IMD | |||||
| Statistics | Minimum, maximum, average and standard deviation | |||||
| Automatic measurements / DeepMeasure™ | ||||||
| Scope mode | AC RMS, true RMS, cycle time, DC average, duty cycle, falling rate, fall time, frequency, high pulse width, low pulse width, maximum, minimum, peak to peak, rise time, rising rate. | |||||
| Spectrum mode | Frequency at peak, amplitude at peak, average amplitude at peak, total power, THD %, THD dB, THD+N, SFDR, SINAD, SNR, IMD | |||||
| Statistics | Minimum, maximum, average and standard deviation | |||||
| Serial decoding | ||||||
| Protocols | 1-Wire, ARINC 429, CAN, CAN FD, CAN J1939, DALI, DCC, DMX512, Ethernet (10Base-T), FlexRay, I²C, I²S, LIN, Manchester, MODBUS (ASCII and RTU), PS/2, SENT, SPI, UART/RS-232. Subject to number of channels available. | |||||
| Inputs | All input channels with any mixture of protocols | |||||
| Mask limit testing | ||||||
| Mask creation | User-drawn, table entry, auto-generated from waveform or imported from file | |||||
| Actions | Highlight on screen, select in buffer overview, activate alarm | |||||
| Statistics | Pass/fail, failure count, total count | |||||
| Alarms | ||||||
| Initiating events | Capture, buffer full, mask fail | |||||
| Alarm actions | Beep, play sound, stop/restart capture, run executable, save current buffer/all buffers, trigger signal generator | |||||
| Display | ||||||
| Interpolation | Linear or sin(x)/x | |||||
| Persistence modes | Digital color, analog intensity, fast, custom | |||||
| Data export | ||||||
| Interpolation | Linear or sin(x)/x | |||||
| Persistence modes | Digital color, analog intensity, fast, custom | |||||
| Environmental | ||||||
| Temperature range (operating) | 0 °C to 45 °C | |||||
| Temperature range (stated accuracy) | 20 °C to 30 °C | |||||
| Temperature range (storage) | –20 °C to +60 °C | |||||
| Humidity range (operating) | 5% to 80% RH non-condensing | |||||
| Humidity range (storage) | 5% to 95% RH non-condensing | |||||
| Altitude | Up to 2000 m | |||||
| Pollution degree | EN 61010 pollution degree 2: “only nonconductive pollution occurs except that occasionally a temporary conductivity caused by condensation is expected” | |||||
| Physical properties | ||||||
| Dimensions | 190 x 170 x 40 mm (7.5' x 6.7' x 1.6') | |||||
| Weight | < 0.55 kg (19.4 oz) | |||||
| Software | ||||||
| Windows software | PicoScope 6 PicoLog 6 PicoSDK software development kit Windows 7, 8 or 10 recommended | |||||
| macOS software | PicoScope 6 Beta PicoLog 6 Software development kit (SDK) OS versions: see release notes | |||||
| Linux software | PicoScope 6 Beta Software development kit (SDK) See Linux Software & Drivers for details of supported distributions | |||||
| Raspberry Pi software | PicoLog 6 for Raspberry Pi 3B and 4B (Raspberry Pi OS) | |||||
| General | ||||||
| What's in the box? | PicoScope 4000A Series high-resolution oscilloscope USB 3.0 cable USB Oscilloscope Quick Start Guide 10:1/1:1 switched probes (quantity shown below) | |||||
| Number of probes included | 2 | 4 | 4 | |||
| PC connectivity | SuperSpeed USB 3.0 (USB 2.0 compatible) | |||||
| Power requirements | Powered from USB | |||||
| Ground terminal | M4 screw on rear panel | |||||
| Safety compliance | Designed to EN 61010-1; LVD compliant | |||||
| EMC compliance | Tested to meet EN61326-1 and FCC Part 15 Subpart B | |||||
| Environmental compliance | RoHS and WEEE | |||||
| Total satisfaction guarantee | In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days. | |||||
