#DT2230
Photo/Contact Tachometer
#DT2230
Photo/Contact Tachometer
$244.00*
*15% GST applicable for sales within NZ
Product Description
- For All Rotational Measurements
- Contact RPM Measurements
- Conveyor Belt Speeds
- Non-Contact Red Laser RPM Detection

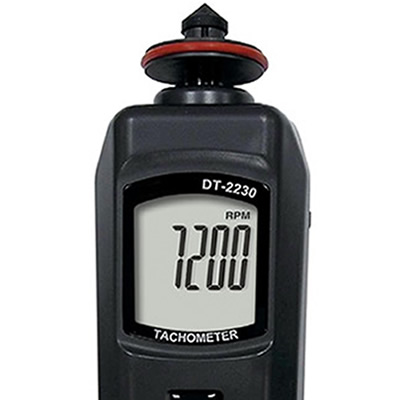

The DT2230 is really three tacho instruments in one. Point it one way and the photo-tach function allows safe non-contact RPM measurement.
Turn it the other way and press one of the supplied tips directly onto a shaft for RPM or run the wheel tip on a conveyor for belt speed.
The display even orientates readings with the function selected. So when you turn the meter around, you're always reading it right side up!
The DT2230 uses a visible red laser for non-contact measurements. This is much more precise and so much easier to use, than the older incandescent models.
Specifications
| Ranges: | ||
| Photo Tach: | 5 to 99 999 RPM | |
| Contact Tach: | 0.5 to 19 999 RPM | |
| Surface Speed: | 0.05 to 1999.9 m/min | |
| Resolution: | ||
| Photo Tach: | 0.1 RPM (<1000 RPM), 1 RPM (≥ 1000 RPM) | |
| Contact Tach: | 0.1 RPM (<1000 RPM), 1 RPM (≥ 1000 RPM) | |
| Surface Speed: | 0.01m/min (< 100 m/min), 0.1 m/min (≥ 100 m/min) | |
| Accuracy: | ±(0.1%Rdg + 1Dgt)@ 0 to 50°, <80%RH | |
| Photo Detection Distance: | 50 to 1500mm (may vary with condtions) | |
| Display: | LCD, 32 x 28mm, 5 digits | |
| Data Output: | RS232 PC serial interface (optional cable & software) | |
| Other Functions: | Min. max. and last reading memory | |
| Dimensions: | 165(L) x 50(W) x 33mm, 182gm | |
| Battery: | 4 x 1.5V AAAs. (not included) | |

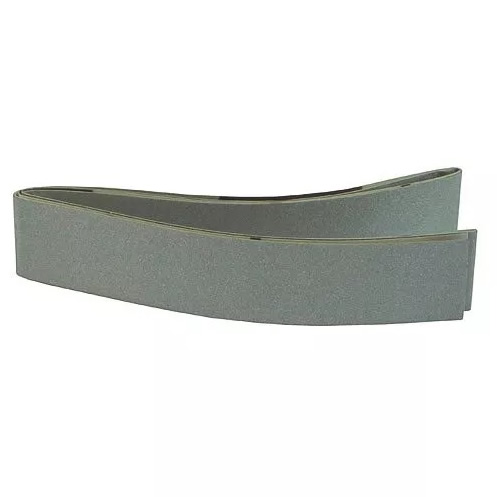

| Accessories Included: | Reflective tape (600mm), spare cone tip, spare funnel tip and carry case. | |
