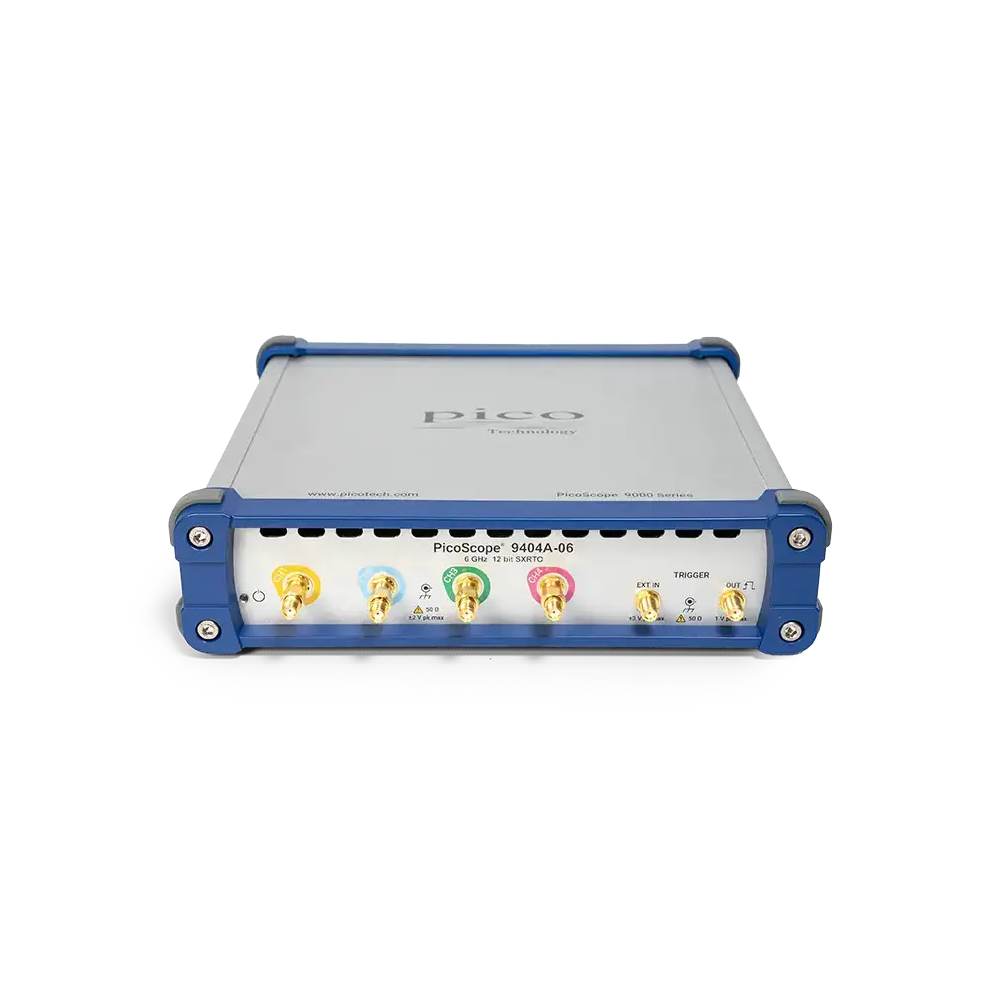

PicoScope 9400A Series- 6 GHz
_6a86570662959265474747.webp)
_6a865bd05b998879874864.webp)
_6a865bd1aeacf532072246.webp)
#PQ403
PicoScope 9400A Series- 6 GHz
$34558.76*
*15% GST applicable for sales within NZ
Product Description
- Up to 33 GHz Bandwidth
- Up to 5 TS/s Effective rate
- 12-bit Resolution
- 4 Analog channels
- Up to 16 Gb/s Mask testing
Packed with features

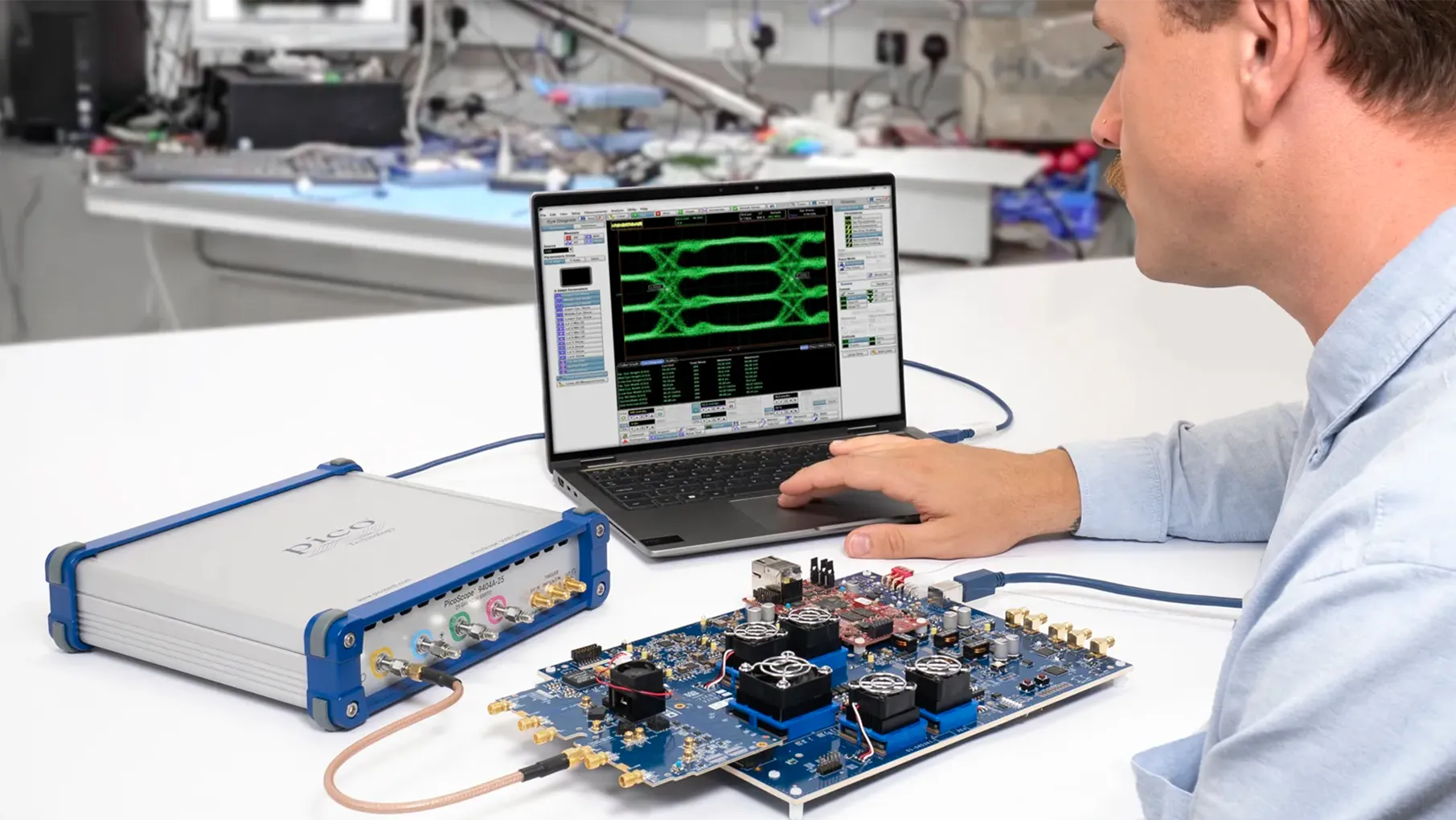

The PicoScope 9400A Series random equivalent-time sampling architecture is ideal for measuring high speed interfaces, such as gigabit digital systems, with repetitive signals or clock streams. Unlike a traditional sampling oscilloscope, an SXRTO can capture the trigger event itself and the waveform immediately before it. With four channels available, the PicoScope 9400A Series is invaluable for validating Signal Integrity (SI) in electronics and telecoms systems designs.
Fast setup for fast signals
Unlike a traditional sampling oscilloscope, an SXRTO can trigger directly off the input signal. For measurements up to 6 GHz, no longer do you need a complicated set-up with an external trigger source; just plug in your signal and start measuring. For higher bandwidth signals up to 20 GHz, use a splitter to feed the signal to the external trigger. Take advantage of the effective sampling rate up to 5 TS/s and analog bandwidth up to 33 GHz without the extra complications of a traditional sampling oscilloscope.
Key features of the PicoScope 9400A Series
Hardware features
- The PicoScope 9400A Series is available with up to 33 GHz bandwidth, plus the following key specifications:
- Capture step transitions down to 14 ps and impulses down to 22 ps wide.
- The maximum sample rate of 5 TS/s equates to a timing resolution of 0.2 ps, using random sampling.
- Multiple trigger options include direct triggering on the signal or triggering on an external trigger signal, up to 20 GHz (depending on model), with trigger jitter as low as 1.2 ps + 0.1 ppm RMS (typical).
- 12-bit vertical resolution with a wide ±1 V/±800 mV input range (model dependent).
Software features
- Meanwhile, the touchscreen-compatible PicoSample 4 software is packed with features to simplify design and test:

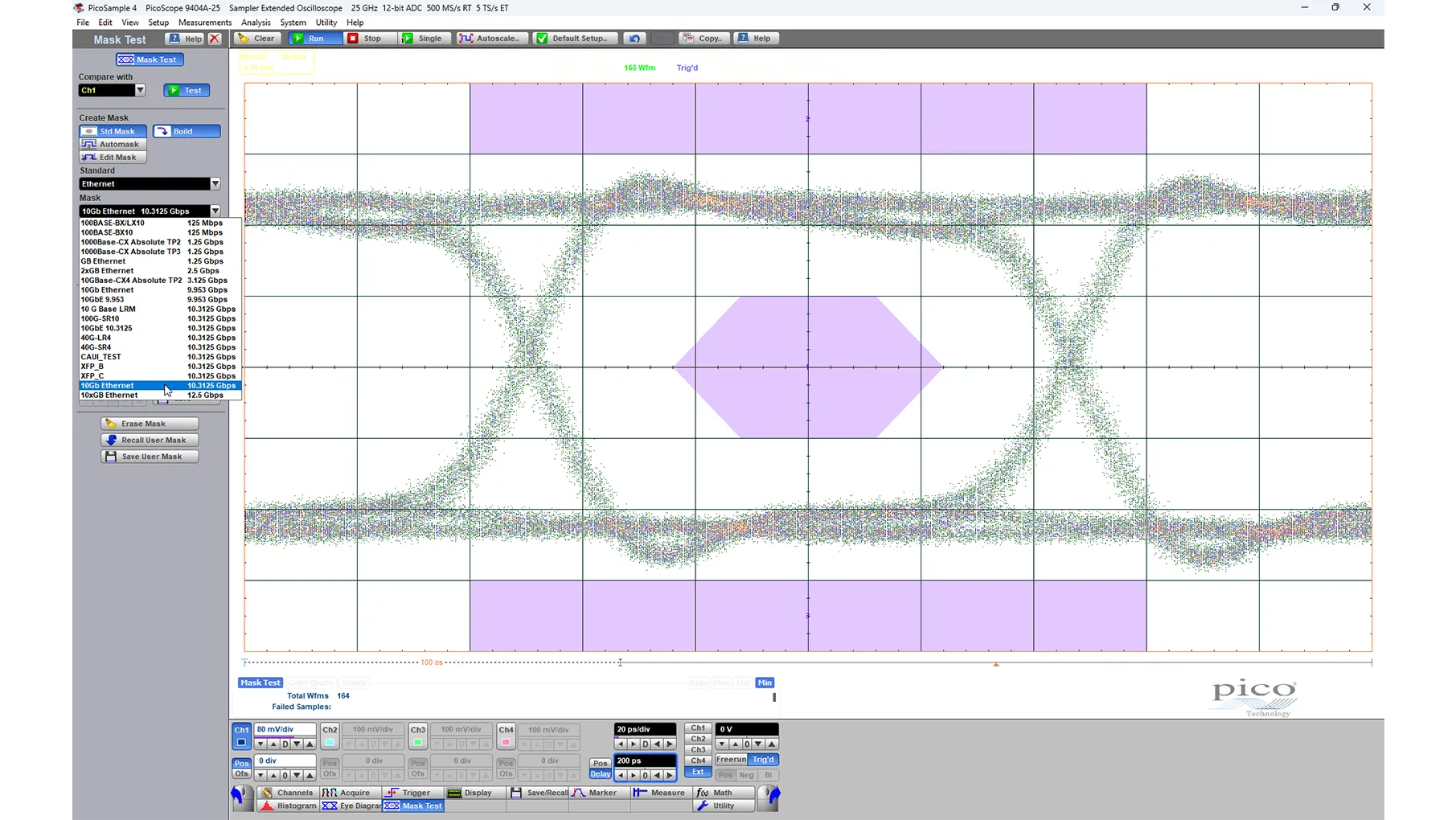

- Over 200 mask tests for common protocols including SONET/SDH, fibre channel and USB.

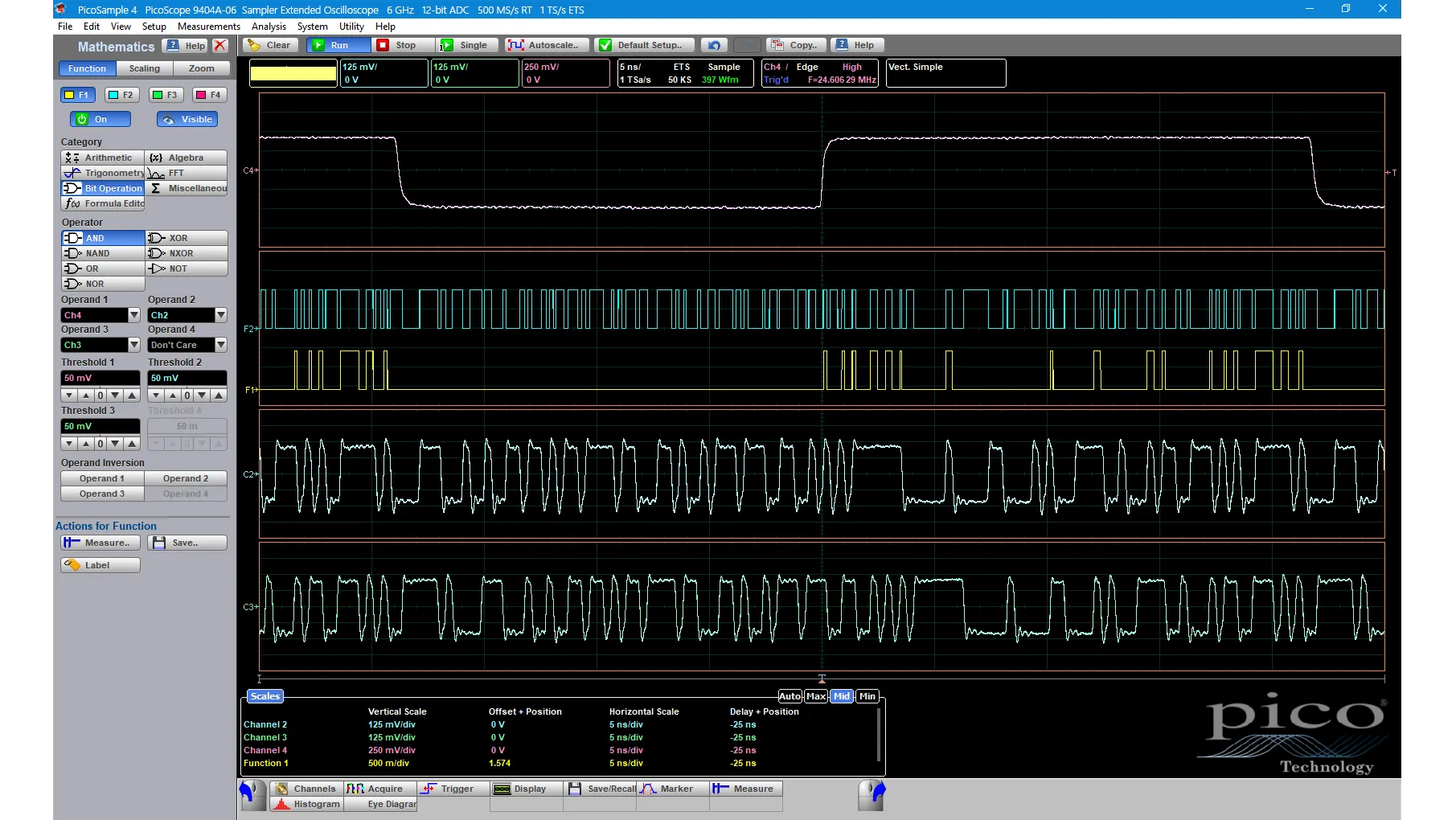

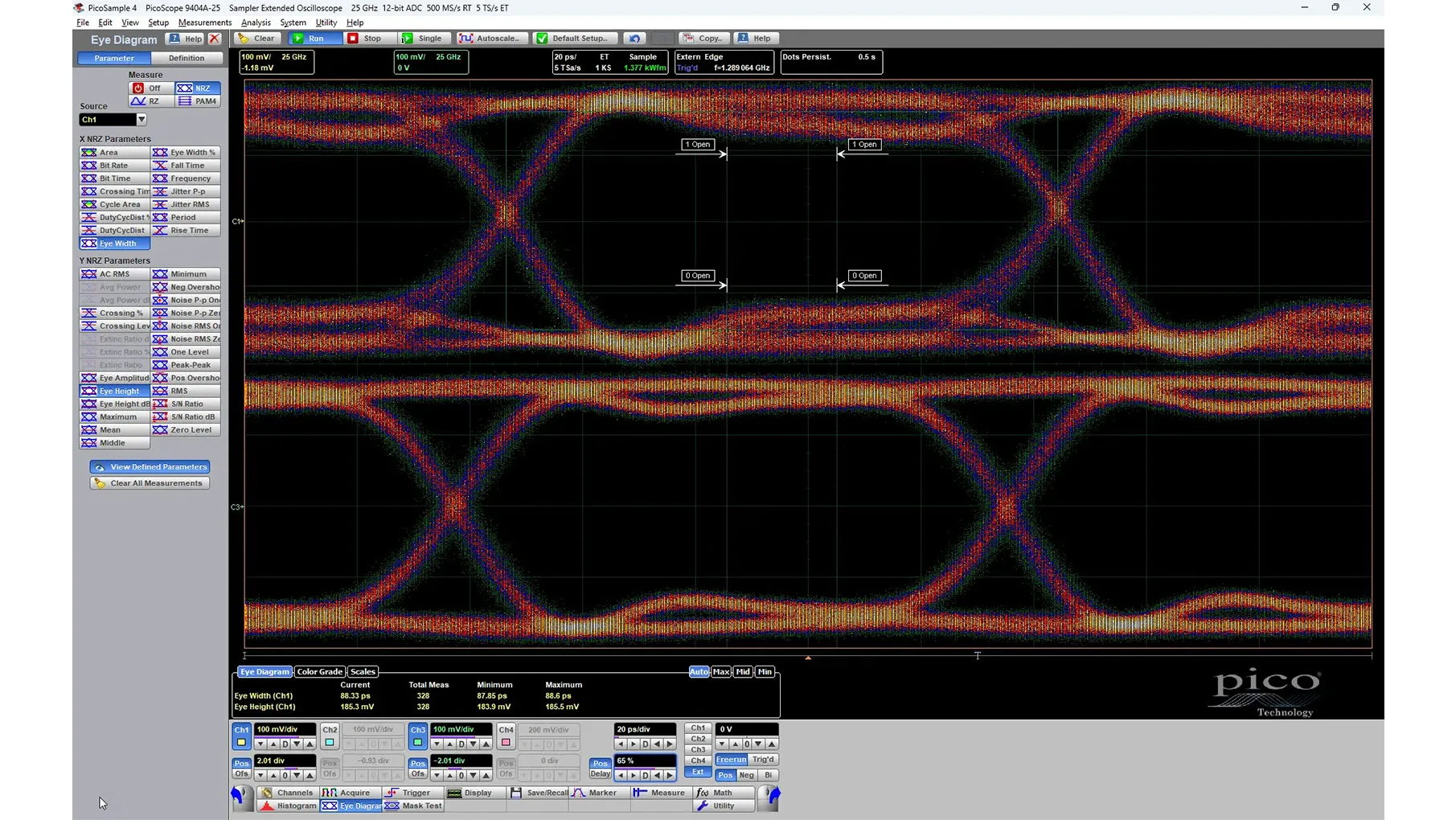

- Over 70 automatic measurements across time, frequency and histograms available, over 130 eye diagram measurement parameters, plus over 50 built-in math functions.
- The configurable display with multiple independent zoom regions lets you see every detail in your data - take advantage of high resolution PC monitors instead of being limited by a built-in screen.
- Every feature in PicoSample 4 is included with the price - no additional hidden costs.
- PicoSample 4 can be run in demo mode: try it out yourself to see how it can accelerate your workflow.
What's in the box
| Description | Quantity |
|---|---|
| PicoScope 9400A Series sampler-extended real-time oscilloscope (SXRTO) | 1 |
| Quick start guide | 1 |
| 12 V power supply, IEC inlet | 1 |
| Localized IEC mains leads (US, UK, AUS, EU) | 4 |
| USB-C® to USB-B (2.0) cable 1.2 m | 1 |
| USB-A to USB-B (2.0) cable 1.8 m | 1 |
| PicoWrench N / SMA / PC3.5 / K combination wrench | 1 |
|
Connector savers SMA: -06 and -16 models 2.92 mm (K): -25 and -33 models |
4 |
| LAN cable, 1 m | 1 |
| Storage / carry case | 1 |
