Fuse Extension Lead
- ATC /ATO fuse extender keeps fuse in circuit while testing
- Allows easy current (clamp) measurement.
- Simply move fuse to extension, plug extension in where fuse was and clamp to measure
WPS500X Automotive Pressure Transducer
- Perform quick and accurate pressure analysis of many automotive systems.
- Accurately measure up to 34.47 Bar (500 psi). Auto zeroing. Ultra fast 100μs response time.
- Internal rechargeable LiPo battery.
TA167 - 200A/2000A AC/DC current clamp
- Measure high compression diesel and petrol starter currents
- 0 to 200/2000 Amps DC & AC pk (to 20kHz)
- Easy push-button Zero Set
Coil-On-Plug (COP) Ignition Probe & Cable
- Display scope patterns of the secondary, faster than scoping the primary
- Suitable for use on most COP & conventional ignition systems
- Find misfires fast
Mixmaster 12 Cylinder Auto Signal Mixer
- View ignition parades of up to 12 cylinders
- Display 2 engine banks of up to 6 cylinders each
- Supplied with 4 secondary ignition leads, extra leads available
BNC to BNC Cable with Earth Clamp
- For use with the Coil-On-Plug Ignition Probe
- Length: 3 metres
Mixmaster Secondary Ignition Pickups
- A set of 4 secondary ignition, leads, each 40cm long
- Combine with Mixmaster & 4-channel scope leads to display 12 channel parade
- Get the most from your Mixmaster
Secondary Ignition Pickup
- View secondary ignition waveforms directly on-screen with an Automotive Oscilloscope
- Shielded 1.8m lead. Clips over plug lead or COP extension
- For use with conventional ignition systems and most HEI and DIS systems
Coil-on-Plug Extension Lead
- Single extension lead
- Clip Pico secondary ignition lead over extension to see HT waveform
- Simply fit between coil pack & plugs
Keyless entry carrier signal detector
- Detect the presence of the keyless entry carrier frequency
- In the range of 125-140 kHz
- 3m long lead
Ultrasonic parking sensor detector
- Prove the correct operation of each of the ultrasonic parking sensors
- Directly showing the strength of the signal from a given sensor
- 2m long lead
Premium test leads 5m long
- For working on larger vehicles
- 5m long black BNC to 4mm cable, with 2.5m fixed ground
- Insulated BNC connector, shrouded 4mm plugs
Premium Test Lead: BNC to 4 mm
- Fully shielded for the complete length of the signal cable
- Color coded BNCs for the scope connections
- 3m insulated BNC to stackable shrouded banana plugs
MI168 S-Hook
- Makes it easy to keep test leads tidy in the engine bay
- Hang PicoScope up by its boot loop
- 100 mm long, plastic coated with rubber caps

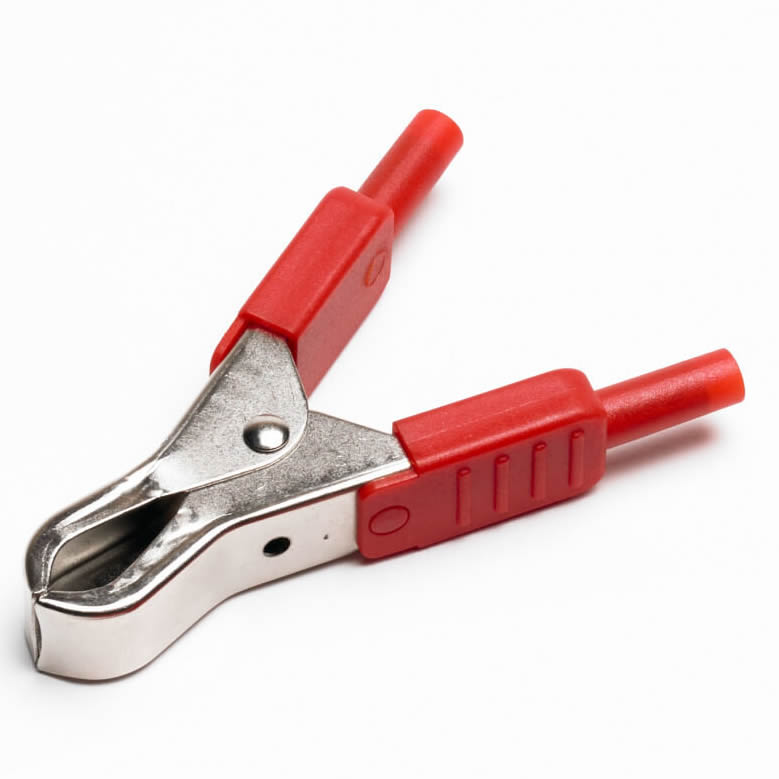

Large Dolphin/Gator Clip
- Fully insulated with a 4 mm socket in the handle
- Easy connection to Pico Premium test lead
- Wide 30 mm opening jaw
Small Crocodile / Gator Clip
- Fully insulated with 4mm socket in the handle
- Toothed grip offers good contact on fine wire
- Easy connection to Pico Premium Test Leads
Battery Clip
- Fits all our BNC to 4 mm Pico Premium Test Leads
- Plier type clips designed to grab and hold the vehicle battery terminals
Red/Black Pair of Insulation Piercing Clips
- Provides the exact pressure needed to pierce the insulation of a wide range of wires
- Rotating banana jacks prevent test lead twisting
- Keeps the oscilloscope in-circuit while the wire is pierced
TA008 Acupuncture Back Pinning Probe Set
- Back pinning probe set
- Fit onto 4mm banana plugs, fine tips slide easily past connector seals
- 7 complete acupuncture probes, 3 probe sizes, replacement screws & needles
Flexible Back Pinning Probe
- Designed for back-probing under the insulation
- Flexible mid-section improves access to difficult terminals
- Fits easily onto Pico Premium Test Leads
Multimeter Probe
- When a quick non-clip-on connection is required
- Pushes easily onto a Pico Premium Test Lead
- 4mm socket, length 115mm. Also available in black
Shrouded to Unshrouded Adaptor
- Adapts 4mm shrouded plug to unshrouded plug
- Allows test lead connection into any breakout box
- Quick push-on connection
6-Way Universal Breakout Lead
- Connect PicoScope any vehicle - Micro(0.6 mm)
- Eliminates the need to own many specific breakout leads for engine diagnostics
- Available with 0.6, 1.5, 2.3 & 2.8mm male & female spade connectors
TA012 Two Pin Break Out Lead
- Enables voltage readings from numerous 2 pin sensors in the engine compartment
- Separate access to individual wires allows easy current measurement with clamps
- Simultaneously display both injector current and voltage on your PicoScope
PP619 CAN-Bus Test Box
- Instantly Check Power & Ground Circuits
- Identify Communication Link Protocols
- Connect to PicoScope
TA014 FirstLook Engine Diagnostic Sensor
- Fast & accurate automotive diagnosis from tail pipe
- Diagnose burnt valves, bad injectors & other problems without major disassembly
- Includes vacuum line adaptor & connector cable
TA197 10:1 Attenuator
- Perform quick and accurate ignition waveform analysis of many automotive systems
- Allows voltages of up to 400 V to be measured
- Increases the input impedance of the oscilloscope from 1 MΩ to 8 MΩ

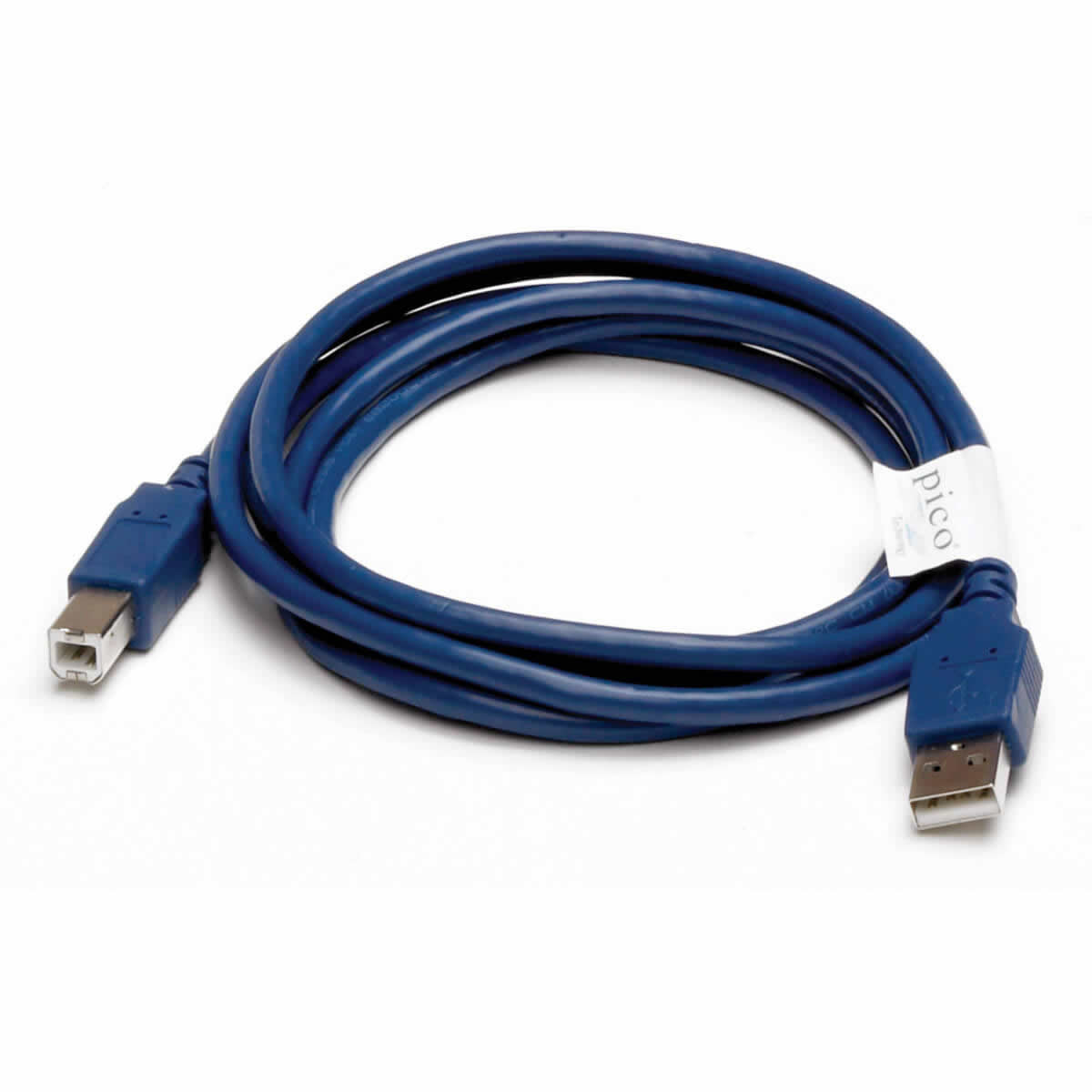

USB Cable
- Connect PicoScope to PC
- Scope power and high signal rating
- Compatible with USB2 PCs
