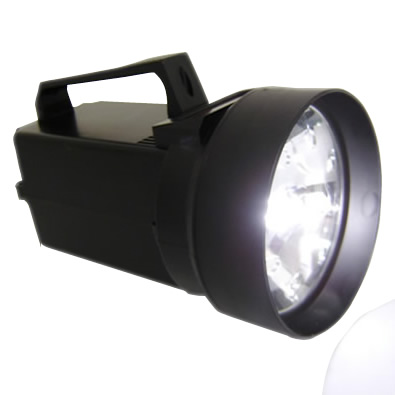

DT2239 Digital Stroboscope
#DT2239
DT2239 Digital Stroboscope
$398.00*
*15% GST applicable for sales within NZ
Product Description
- Ideal for measuring or inspecting moving gears, fans, pumps...
- Anything rotating or reciprocating.
- Crystal controlled flash rate and display accuracy
- Bright Xenon Lamp with 80° beam angle
All machine service engineers, newspaper printers and plant maintenance technicians, at some stage, need to 'freeze' a moving machine (or print run) for inspection without interrupting underlying processes.
The 2239 strobe lowers the cost of preventative maintenance inspections by allowing this important work to be carried out without bringing the whole factory to a grinding halt.
Precise control over the bright xenon lamp flash rate, results in a clearer view of the moving parts and more accurate speed measurements.
Specifications
| Flash Rate: | 100 to 10,000 flashes per minute (FPM) |
| Resolution: | 1 FPM up to 999.9 FPM 10 FPM above 1000 FPM to 10 000 FPM |
| Accuracy: | ±1 Dgt (100 to 5000 FPM) ±0.05% (Over 5000 FPM) |
| Flash Adjustment: | Fine & course adjustment on two ranges |
| Display: | 4 digit bright red LED |
| Xenon Flash: | 4 Joules, 6500°K, 60~1000µS duration |
| Dimensions: | 210(H) x 120(W) x 120mm, 1kg |
| Power Supply: | 230V AC |
| Accessories Included: | Mains Cord |
