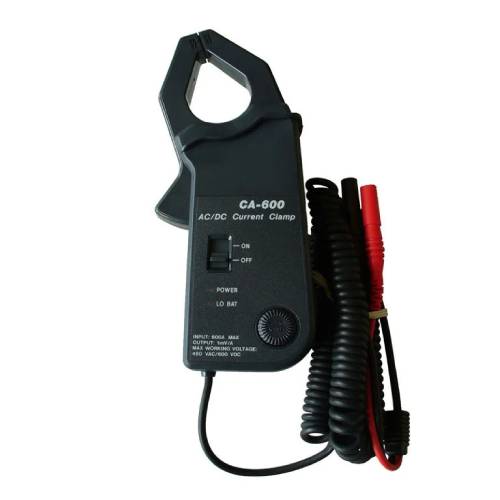

CA600 AC/DC Current Clamp Adaptor - BNC connector
#TA019
CA600 AC/DC Current Clamp Adaptor - BNC connector
$288.00*
*15% GST applicable for sales within NZ
Product Description
- 0 to 600 Amps DC & AC @ 50 to 400Hz
- Good choice for measuring car and SUV starter motor currents
- Adjustable Zero Set. 4mm Banana connectors on curly cord.
Power Analysers
DW6090 Single Phase Portable Power Analyser
$681.00
DW6092 Three Phase Portable Power Analyser
$2317.00
Specifications
| Measurement Range: | 0 to 600 Amps DC & AC |
Bandwidth: | 50 to 400Hz |
Output: | 1mV/1A |
Output Ratios: | 1:1000 |
Basic Accuracy: | ±(2% + 2mV) |
Jaw Size (ID): | 30mm |
Safety: | EN 61010-1 CATII |
Dimensions: | 178(H) x 70(W) x 33mm, 290gm |
Battery: | Standard 9V Battery |
